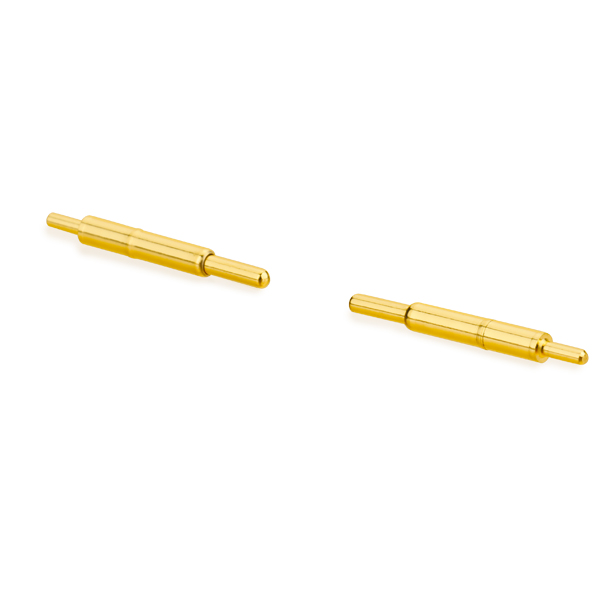

Product Solution
Don’t need to Soldering, more convenient for customer usage
Two side can flexible connection, more convenient for replace and teardown, lower down repair cost.
Product structure appearance base on customer customized space.
Product characteristics
1. Long life, use times can reach more than 100,000 times
2. Free mold, convenient customization, cost saving
3. The elasticity can be accurately measured and adjusted
4. Diversified production modes (SMT, plug-ins, etc.)
5. Small spacing saves space and gives designers a more flexible configuration structure
6. Low inductance, better high-frequency solution
7. Meet RoHS and HF(connector) requirements
Don’t need to Soldering, more convenient for customer usage
Two side can flexible connection, more convenient for replace and teardown, lower down repair cost.
Product structure appearance base on customer customized space.
Product characteristics
1. Long life, use times can reach more than 100,000 times
2. Free mold, convenient customization, cost saving
3. The elasticity can be accurately measured and adjusted
4. Diversified production modes (SMT, plug-ins, etc.)
5. Small spacing saves space and gives designers a more flexible configuration structure
6. Low inductance, better high-frequency solution
7. Meet RoHS and HF(connector) requirements
Basic parameter
| Project | Parameter #1 | Parameter #2 | Parameter #3 |
| Raw materials | Needle/tube: Brass | Spring: Stainless steel | |
| Electroplating | Needle: 0.1um gold plated, 1.4um nickel plated | Needle: 0.4um gold plated, 1.4um nickel plated | |
| Electrical performance | Contact resistance :30mOhm Max. | Rated voltage :36V DC Max | Standard current :2.0A |
| Mechanical properties | Durability :10,000 cycle min. |
