Details
Product Solution
More better Positioning, suitable for SMT/DIP, Single pin can SMT
It can be used for BTB connection
Easy to soldering
Make full use of PCB space, lower down product height over PCB
Product characteristics
1. Long life, use times can reach more than 100,000 times
2. Free mold, convenient customization, cost saving
3. The elasticity can be accurately measured and adjusted
4. Diversified production modes (SMT, plug-ins, etc.)
5. Small spacing saves space and gives designers a more flexible configuration structure
6. Low inductance, better high-frequency solution
7. Meet RoHS and HF(connector) requirements
More better Positioning, suitable for SMT/DIP, Single pin can SMT
It can be used for BTB connection
Easy to soldering
Make full use of PCB space, lower down product height over PCB
Product characteristics
1. Long life, use times can reach more than 100,000 times
2. Free mold, convenient customization, cost saving
3. The elasticity can be accurately measured and adjusted
4. Diversified production modes (SMT, plug-ins, etc.)
5. Small spacing saves space and gives designers a more flexible configuration structure
6. Low inductance, better high-frequency solution
7. Meet RoHS and HF(connector) requirements
Basic parameter
| Project | Parameter #1 | Parameter #2 | Parameter #3 |
| Raw materials | Needle/tube: Brass | Spring: Stainless steel | |
| Electroplating | Needle: 0.1um gold plated, 1.4um nickel plated | Needle: 0.4um gold plated, 1.4um nickel plated | |
| Electrical performance | Contact resistance :30mOhm Max. | Rated voltage :36V DC Max | Standard current :2.0A |
| Mechanical properties | Durability :10,000 cycle min. |

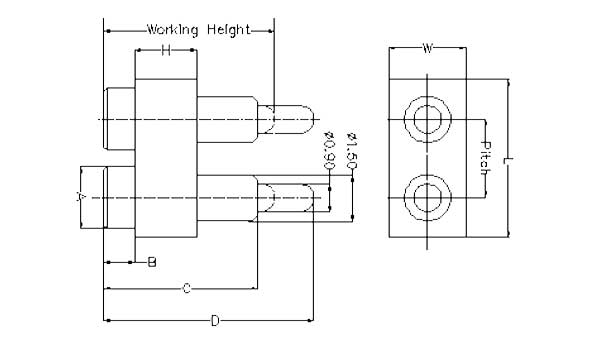

Dual Row DIP Type
Single Row Dip Type 12P
1.03 Barrel
1.5 Barrel
1.25 Barrel
6.6 Barrel
DIP Type H1.5 2.0 2.5
